CNC Router Systems From MultiCam

---

RAM ENGINEERING a four decade old company is the authorised distributor/dealer for MultiCam Inc, USA, products in India. MultiCam Inc, USA, offers large size CNC Router machines.

We provide sales, installation, service and support for all our machines.

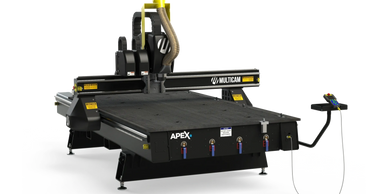

The flagship CNC Router machine from MultiCam Inc., USA, is the perfect balance of performance and precision. The Apex 3R has cutting speeds upto 49.5 meters per minute and is designed for a wide range of applications such as routing, Knife cutting etc. This machine is the best CNC  Router for cutting Aluminum, Acrylic, Plastic and is ideally suited for sign making.

Available Table working sizes are 4ft x 8ft  with Gantry clearance of 150mm.

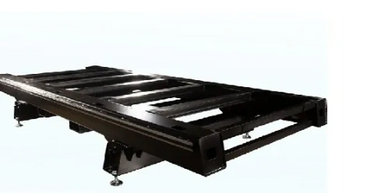

The base and gantry of the Apex 3R is made of heavy duty steel tubing that is welded, stress relieved and precision machined to allow users to cut material at higher speeds, with high accuracy and optimum efficiency.

Apex 3R gives users a variety of options of High Speed Spindles with rated power from 7.5Kw to 32Kw. Spindle speed ranges from 24K to 32K RPM. This gives the user the capability to cut dense material with precision.

Single or Dual Knife Pneumatic and Oscillating options are also available.

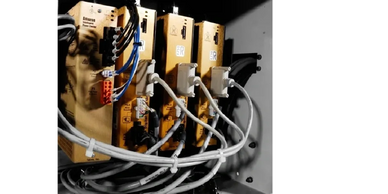

Digital Servo Drives and brushless digital AC servo motors as part of the digital servo vector drive system are standard parts of the Apex 3R machine.

This provides the user with accurate movement for a precision cut.

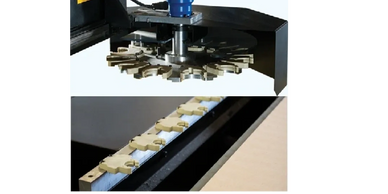

Linear or Rotary ATC options with 12 tools holder positions are available in the Apex 3R. This allows the user to set up multiple tools for different types of cuts in the same program, thereby giving the user a lot of flexibility in using the machine.

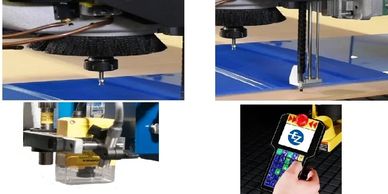

Add on options are:

• Active Dust Boot.
• Surface Probe and Calibration sensor.
• Laser pointer.
• Multivision Dynamic Digital registration.
• Pop up pins.
• Pneumatic vacuum zones
• EZ Hand Controller
